AA | Stieber Clutch

Type AA is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.

Standard lubrication is oil. A typical installation is shown on the following page.

The inner race is keyed to the shaft. The fit for centering of the outer race must be to H7* tolerance. Connection of the outer race is via through bolts to grade 10.9 or better. This design can accept an axial misalignment of inner and outer race of ± S/2*.

*These data refer to the indications in the product data sheet attached below (on page 2).

Product Data Sheets

  • p-7426-sc-a4_aa
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • (A4) Overrunning Clutches & Backstops

Service Manual

  • (A4) Type AA

Related Literature

  • Stieber Clutch Line Card
  • Overrunning Clutches & Backstops

Product News

Contact Info

Stieber Clutch
Hatschekstraße 36
69126 Heidelberg - Germany
Phone: +49 6221 3047-0
Fax: +49 6221 3047-31
Email: sales@stieber.de
www.stieber.de

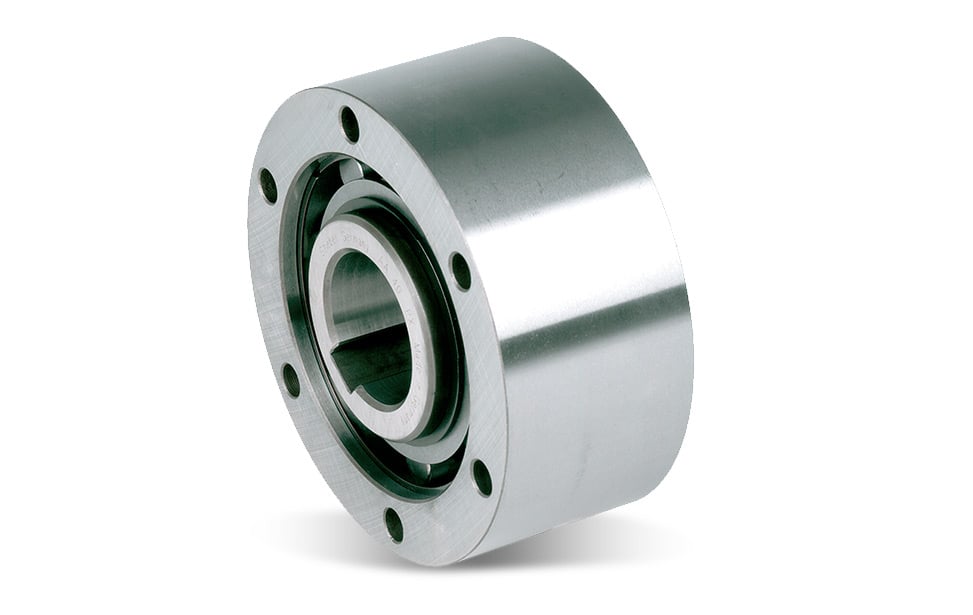

Stieber Clutch AA Type
