AS | Stieber Clutch

Type AS is a roller type freewheel non bearing supported.Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.Nominal outside dimensions are the same as series 62.. ball bearings.

A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances.

The inner race is keyed to the shaft (except 6 mm bore). The outer race has a positive r6* tolerance to give a press fit in a H7* housing. The outer housing must be strong enough to not expand after assembly. This design can accept an axial mis-alignment of inner and outer race of ± S/2*.

*These data refer to the indications in the product data sheet attached below (on page 2).

Product Data Sheets

  • p-7426-sc-a4_as
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • (A4) Overrunning Clutches & Backstops

Service Manual

  • (A4) AS Type

Related Literature

  • Stieber Clutch Line Card
  • Overrunning Clutches & Backstops

Product News

Contact Info

Stieber Clutch
Hatschekstraße 36
69126 Heidelberg - Germany
Phone: +49 6221 3047-0
Fax: +49 6221 3047-31
Email: sales@stieber.de
www.stieber.de

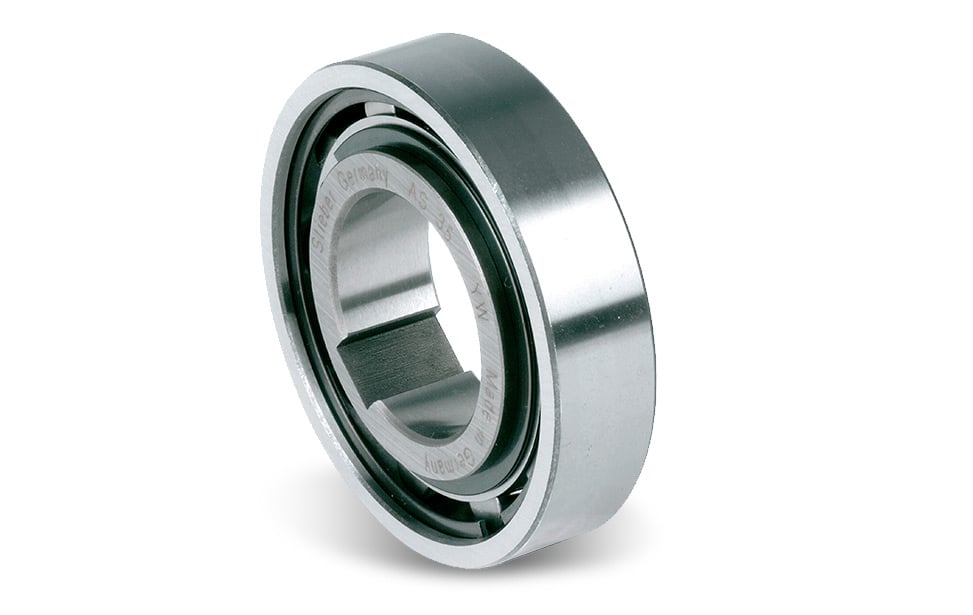

Stieber Clutch AS Type
