NF | Stieber Clutch

Type NF is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.

Standard lubrication is oil. Nominal outside diameter is a standard ball bearing dimension. A typical arrangement is to install this type alongside a bearing with the same housing tolerances, as shown on the following page. The inner race is keyed to the shaft. The outer race has a positive n6 tolerance to give a press fit in a H7* housing. Additional side notches provide for positive torque transmission.

If the housing tolerance is to K6*, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly.

*These data refer to the indications in the product data sheet attached below (on page 2).

Product Data Sheets

  • p-7426-sc-a4_nf
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • (A4) Overrunning Clutches & Backstops

Service Manual

  • (A4) NF Type

Related Literature

  • Stieber Clutch Line Card
  • Overrunning Clutches & Backstops

Product News

Contact Info

Stieber Clutch
Hatschekstraße 36
69126 Heidelberg - Germany
Phone: +49 6221 3047-0
Fax: +49 6221 3047-31
Email: sales@stieber.de
www.stieber.de

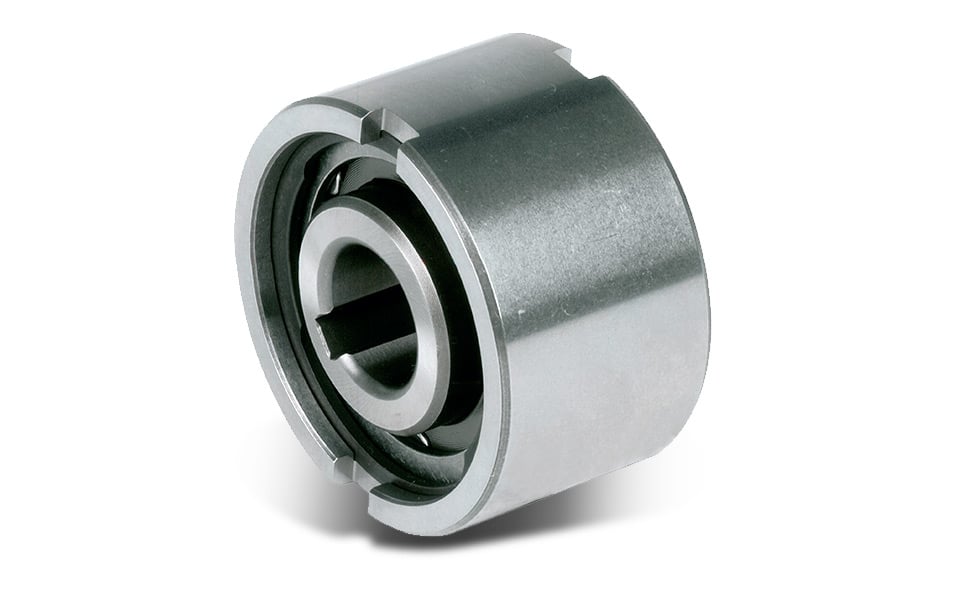

Stieber Clutch NF Type
